Model | Model 1000 |
Host power | 90kw/220HP |
Feed opening width | 1000mm |
Maximum feed size | 280mm(log diameter) |
Knife roller diameter | 800mm |
Knife roller speed | 826r/min |
Blade type | Blade type/Hammer type |

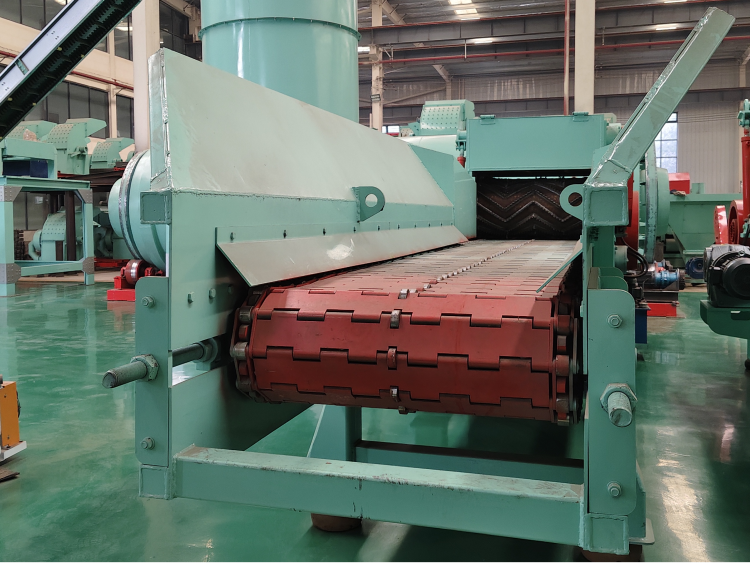

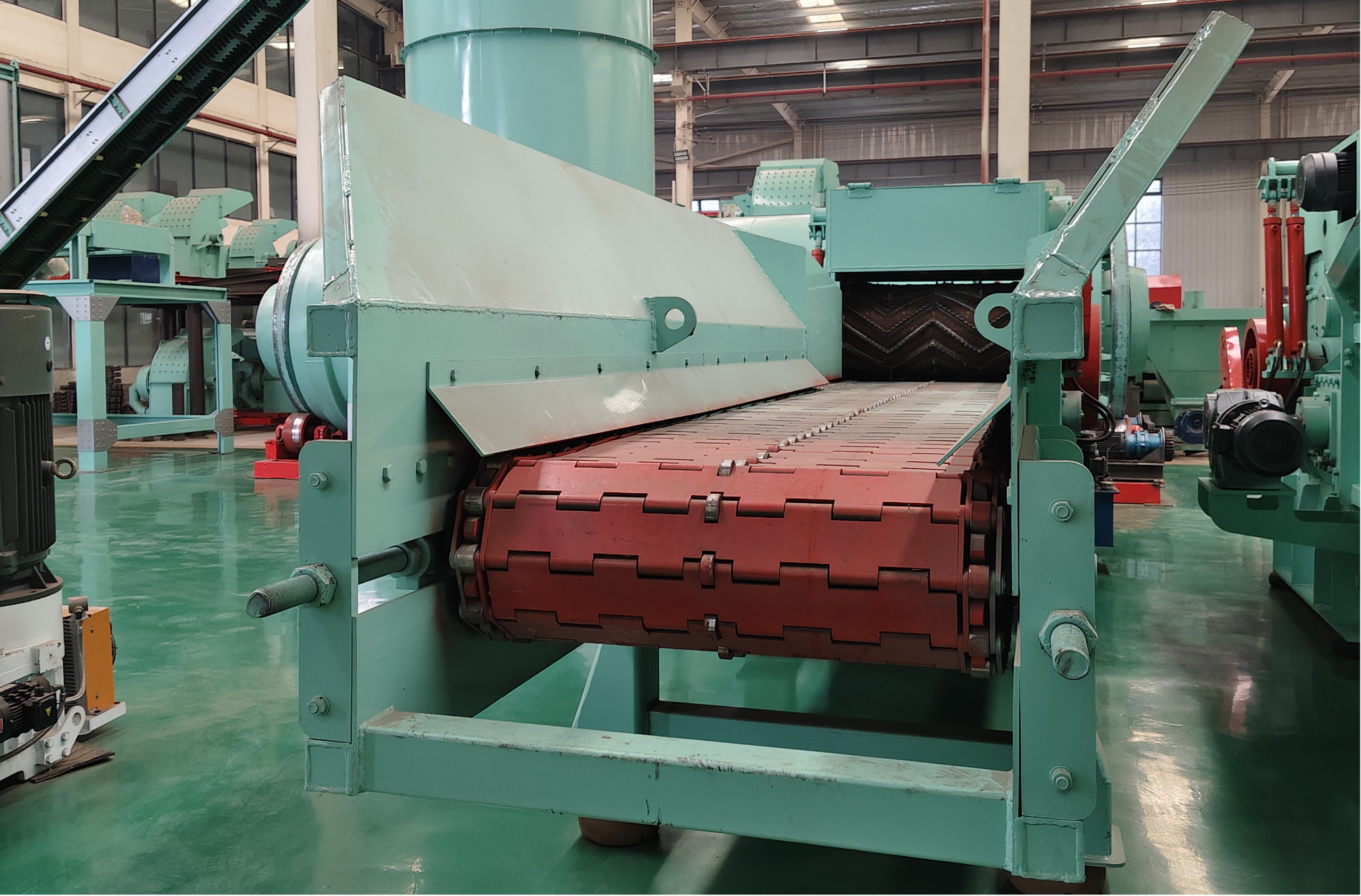

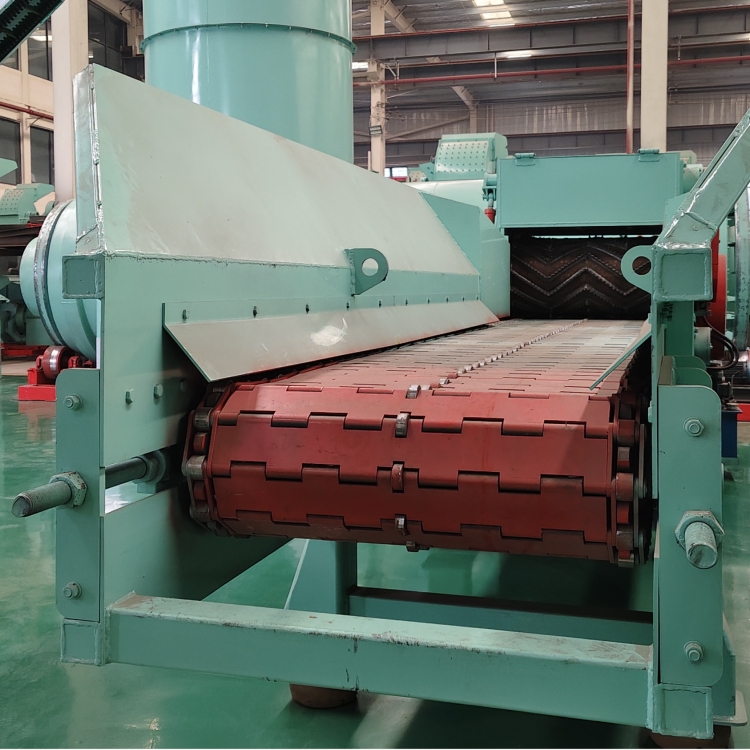

Feed conveyor type | metal chain plate |
Feed conveyor dimensions | 5m |
Discharge conveyor type | rubber belt |
Discharge conveyor dimensions | 10m |
Finished material dimensions | 10-50mm |
Equipment weight | 7500kg |
Equipment dimensions | 8.5*2.2*2.2m(L*W*H) |
production capacity | 8-10t/h |

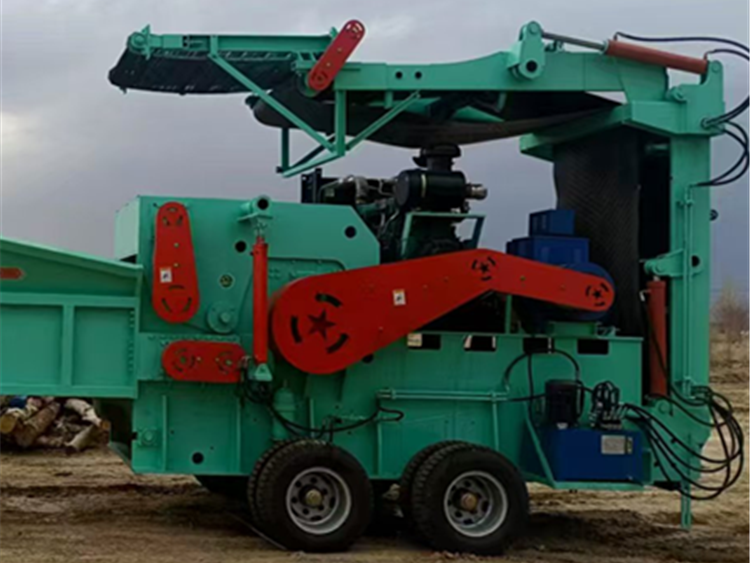

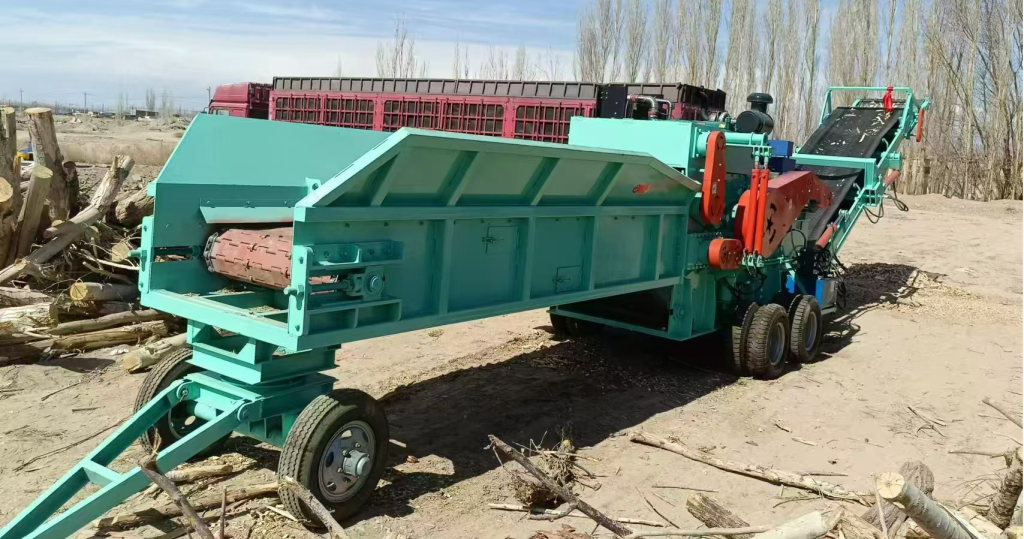

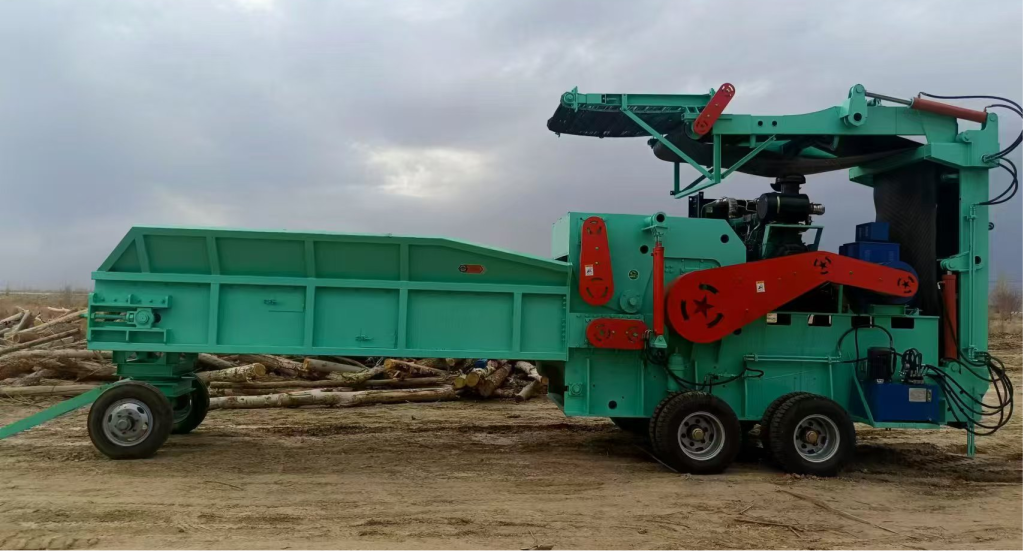

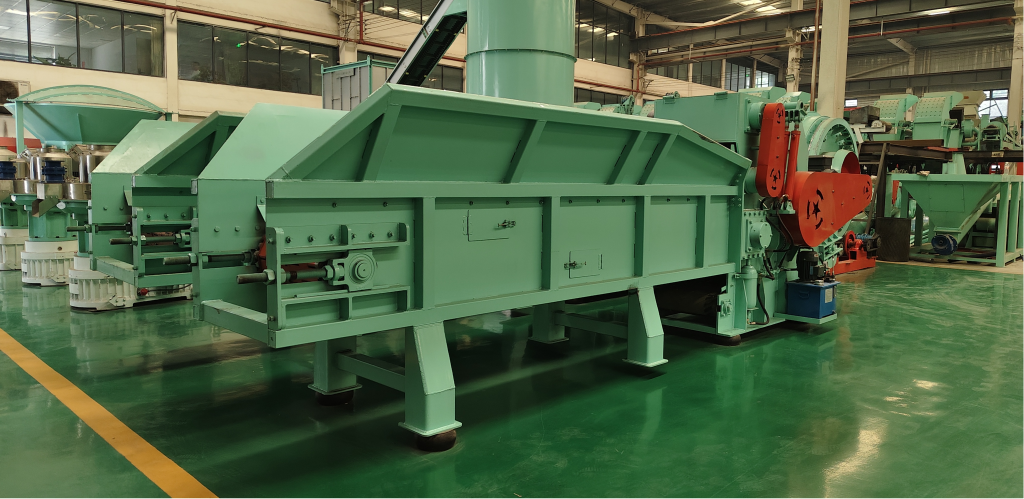

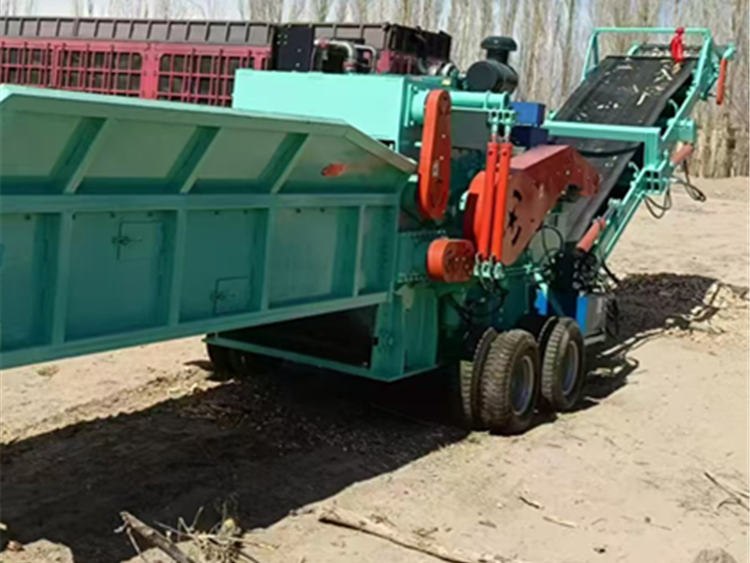

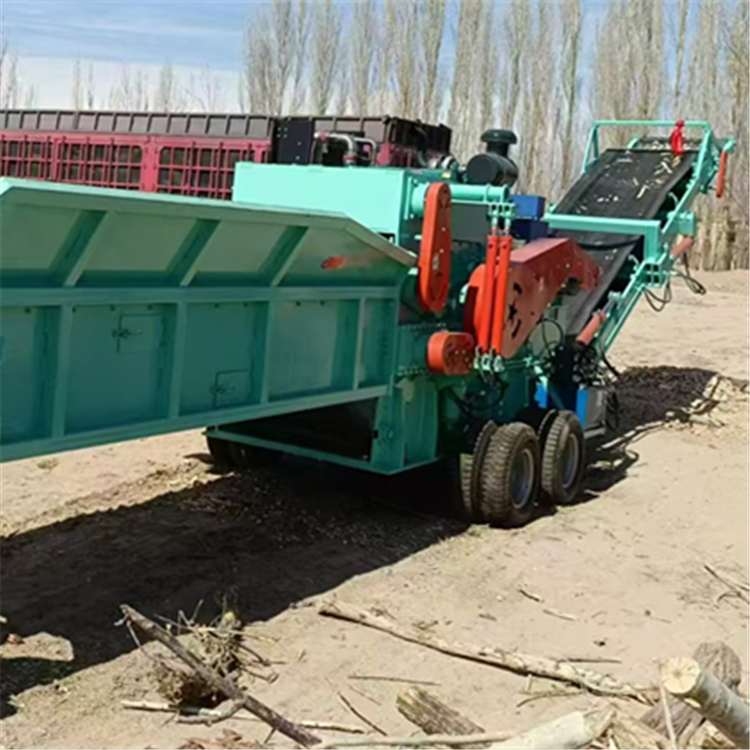

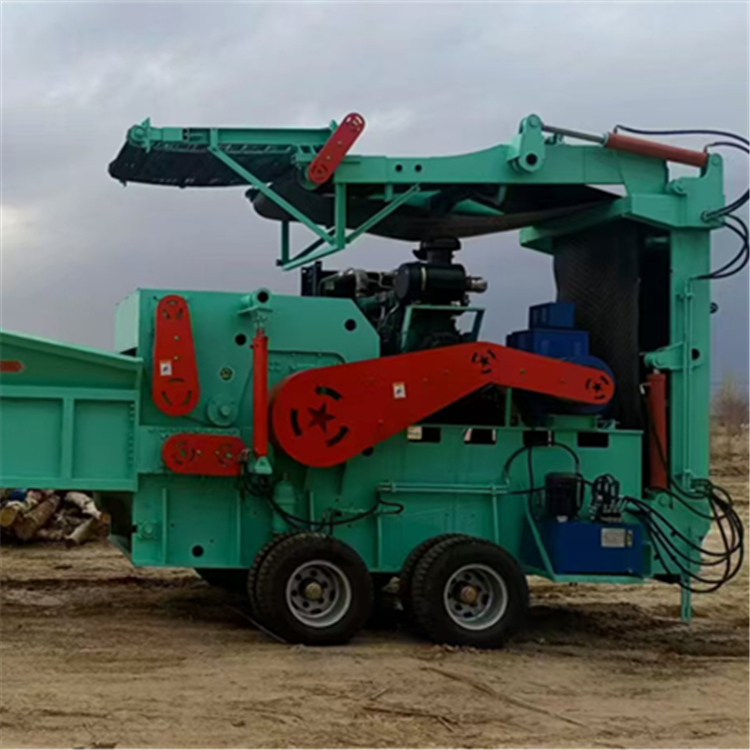

The 1000 model comprehensive wood crusher is a professional wood processing equipment that uses an electric motor and diesel engine power system to easily process various wood materials such as logs, tree branches, and construction templates with a diameter of ≤28cm. It is especially suitable for medium-sized wood processing plants, landscaping companies, and biomass energy enterprises, with a processing capacity of 8-10 tons per hour.
Product Highlights:
Blade Options: Choose between hammer-type and blade-type blades to accommodate a wider range of raw materials and ensure efficient shredding.
Intelligent Power Configuration: 90kW main motor or 220 horsepower diesel engine power + hydraulic auxiliary system, reducing energy consumption by 18%.
Industrial-Grade Durability: High-quality steel welded chassis, alloy blades, and high-manganese steel hammer heads ensure long-term stable operation
Humanized Design: Equipped with an overload protection system and remote control operation
The 1000 model redefines the standards for medium-sized wood shredding equipment with its exceptional shredding efficiency and intelligent operating experience, making it the ideal choice for users seeking high-efficiency production.
