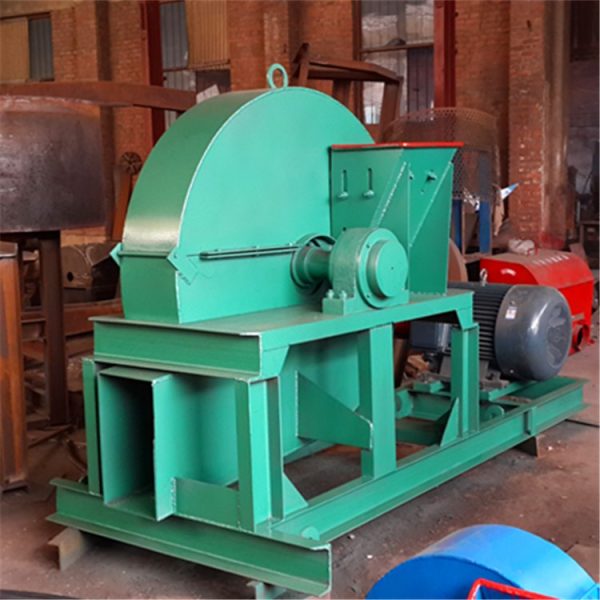

1500 Type Disc Wood Planer

1500 Type Disc Wood Planer

The 1500 disc wood planer is a flagship equipment developed for large-scale production. It is equipped with a 75kW motor drive system and can process large logs with a diameter of ≤38cm to produce industrial-grade wood chips with a size of 2-30mm. The single machine has a production capacity of 2.5 tons/hour, meeting the high standards of global wood-based panel enterprises and biomass energy groups.

model numberModel 1500
Diameter of cutter plate1500 mm
Number of blades12 pcs
Inlet size380*400 mm
Maximum feed size380 mm
power75kw/155HP
Finished Size10-30mm
production capacity2.5t/h

The 1500 disc wood planer is a flagship equipment developed for large-scale production. It is equipped with a 75kW motor drive system and can process large logs with a diameter of ≤38cm to produce industrial-grade wood chips with a size of 2-30mm. The single machine has a production capacity of 2.5 tons/hour, meeting the high standards of global wood-based panel enterprises and biomass energy groups.

Industry Innovations:
Power System: 75 kW total power output provides ample driving force
Cutting System: Heavy-duty alloy cutting discs + wear-resistant tools reduce maintenance costs
Product Control: Adjustable chip thickness from 0.05 to 1.5 mm
Flexible Solutions: Available with either a fixed or wheeled mobile chassis to accommodate diverse requirements

The 1500 Wood Planer combines high output and flexible mobility, making it the preferred equipment for pet bedding and particleboard manufacturers.
