Model | Model 1600 |
Host power | 160kw/460HP |
Feed opening width | 1600mm |
Maximum feed size | 400mm(log diameter) |
Knife roller diameter | 950mm |
Knife roller speed | 760r/min |
Blade type | Blade type/Hammer type |

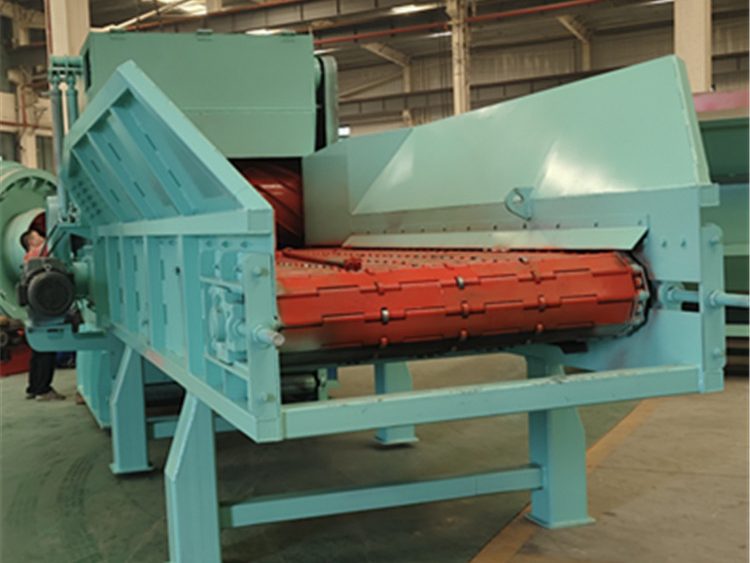

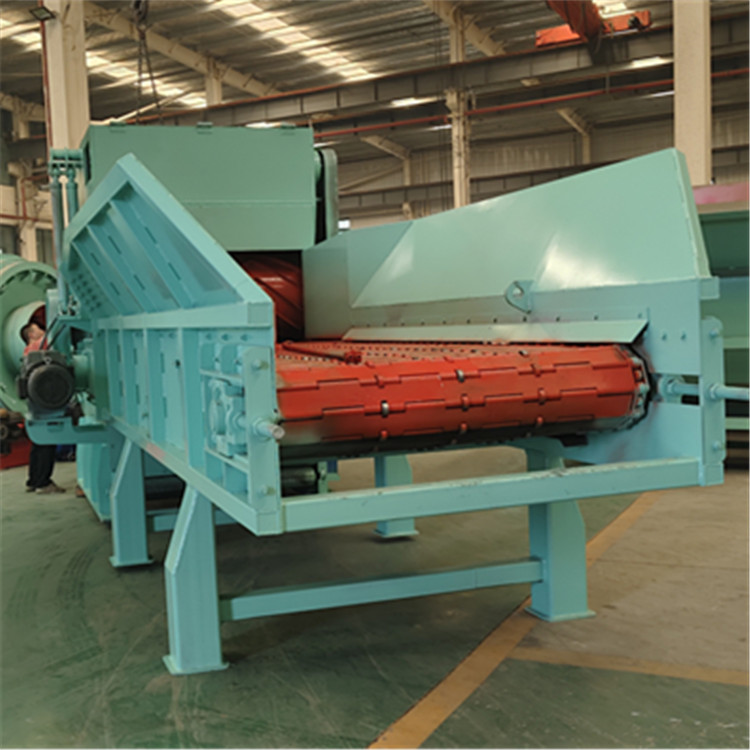

Feed conveyor type | metal chain plate |
Feed conveyor dimensions | 5m |

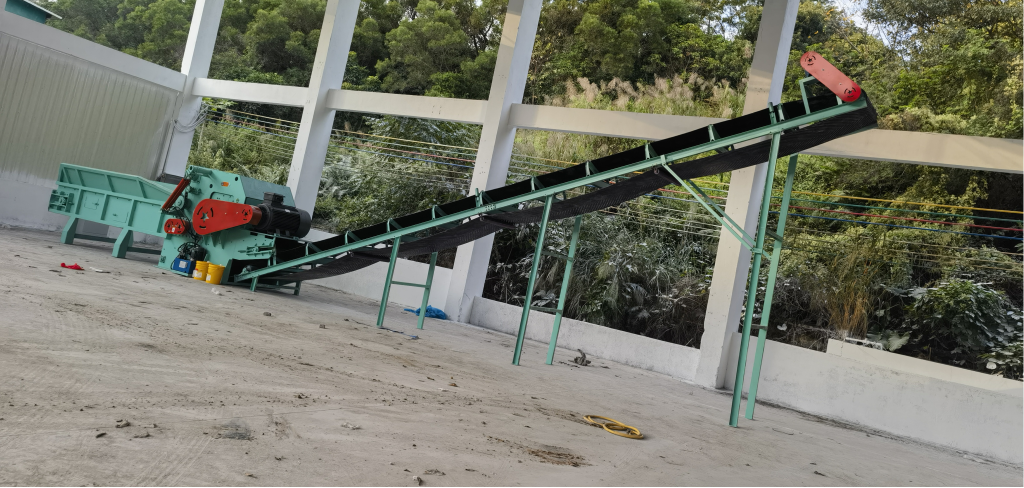

Discharge conveyor type | rubber belt |
Discharge conveyor dimensions | 10m |
Finished material dimensions | 20-50mm |
Equipment weight | 12000kg |
Equipment dimensions | 12*2.8*2.6m(L*W*H) |
production capacity | 30-40t/h |

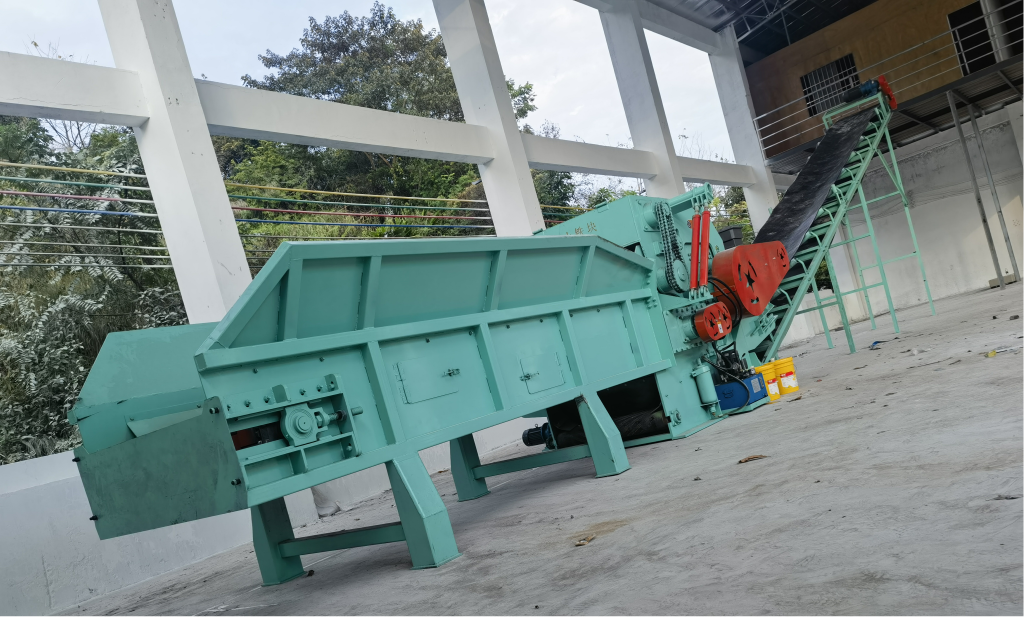

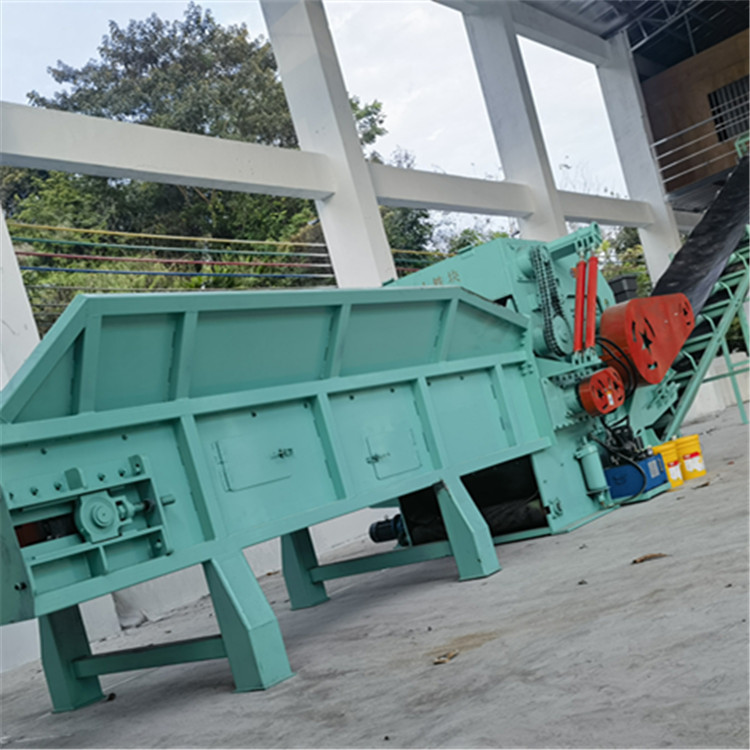

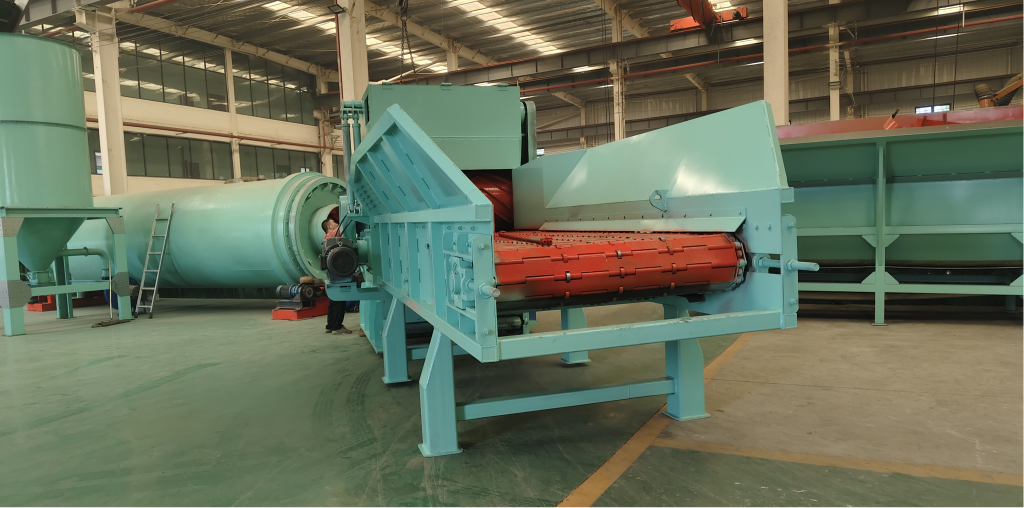

The 1600-type comprehensive wood chipper is a high-performance wood chipping machine specifically designed for large-scale wood processing needs. This equipment can efficiently process various types of wood materials with a diameter of ≤40 cm, such as logs, tree stumps, and construction waste, with a processing capacity of 30-40 tons per hour. It is the preferred equipment for large-scale biomass power plants, wood recycling centers, and municipal engineering projects.
Core Advantages:
Shredding System: Equipped with hammer rotors and blade rotors to accommodate the shredding needs of different types of raw materials

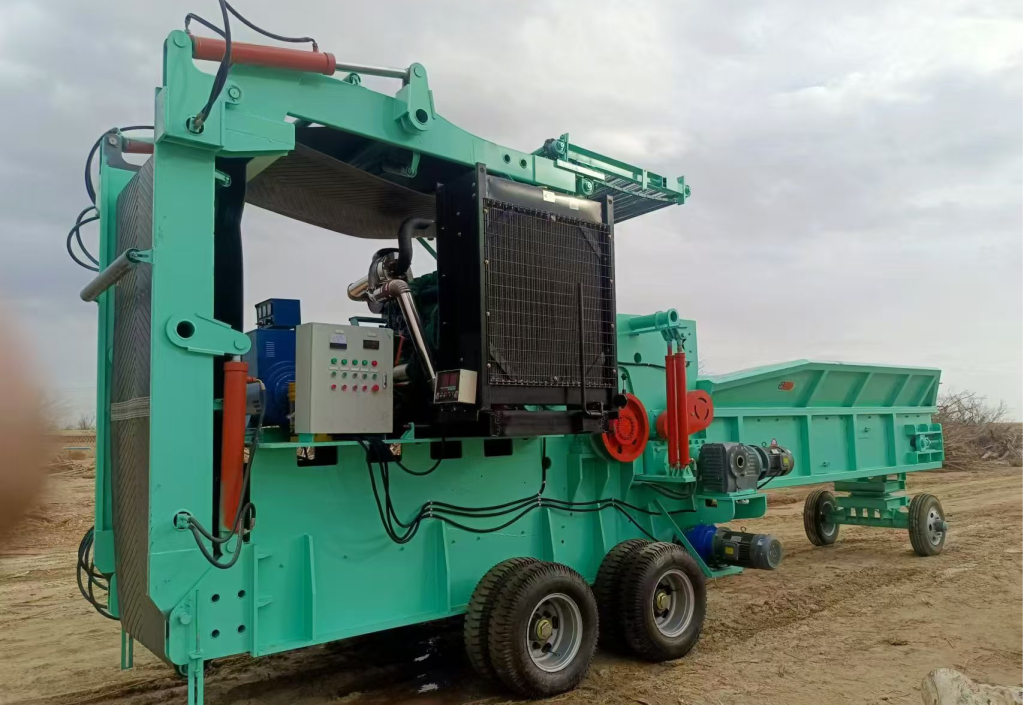

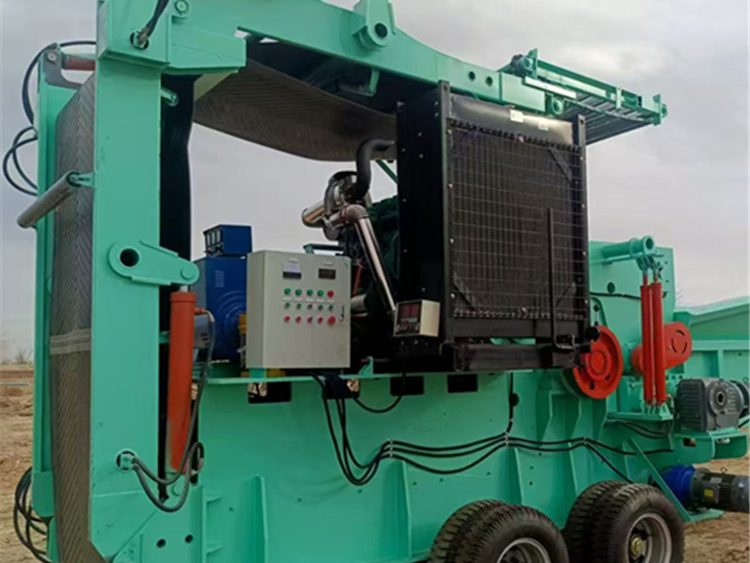

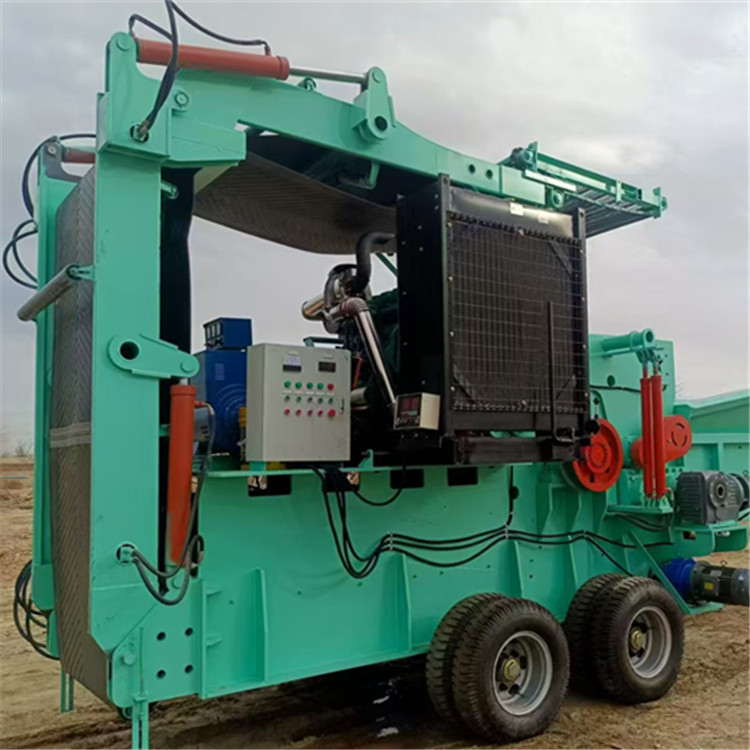

Power Drive: Equipped with a 160-kilowatt main motor or a 460-horsepower diesel engine, suitable for various working scenarios
Intelligent Control System: Equipped with an overload protection system and remote control functionality
Exceptional Durability: Thickened high-performance steel welded chassis and alloy steel blades ensure stable operation
The 1600 model offers industrial-grade reliability and exceptional processing capacity, providing the ultimate solution for large-scale wood waste processing and helping customers achieve efficient and environmentally friendly production.
