Model | Model 600 |
Host power | 37kw/108HP |
Feed opening width | 600mm |
Maximum feed size | 200mm(log diameter) |
Knife roller diameter | 750mm |
Knife roller speed | 826r/min |
Blade type | Blade type/Hammer type |
Feed conveyor type | rubber belt |
Feed conveyor dimensions | 4.5m |
Discharge conveyor type | rubber belt |
Discharge conveyor dimensions | 6m |
Finished material dimensions | 5-50mm |
Equipment weight | 3800kg |
Equipment dimensions | 5.8*1.5*1.7m(L*W*H) |
production capacity | 3-5t/h |

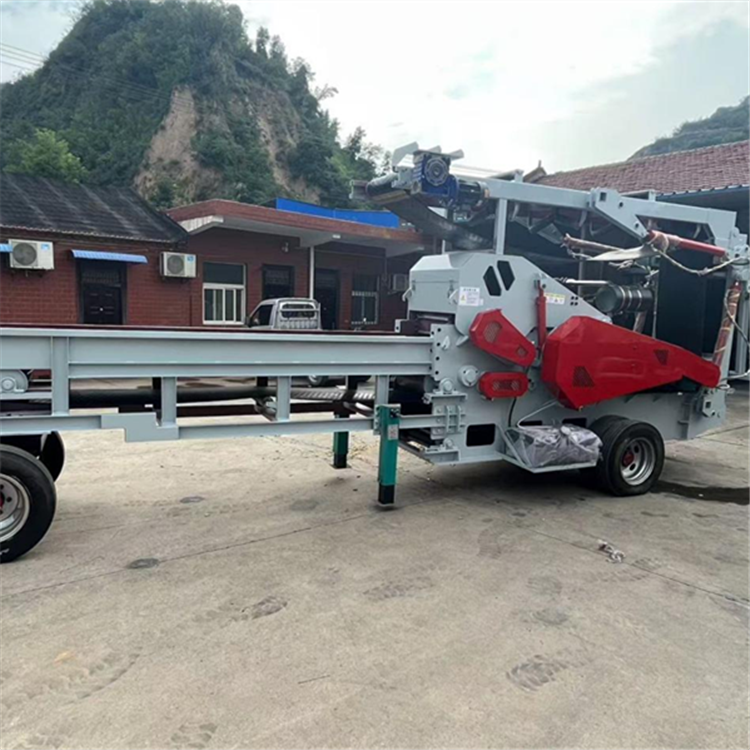

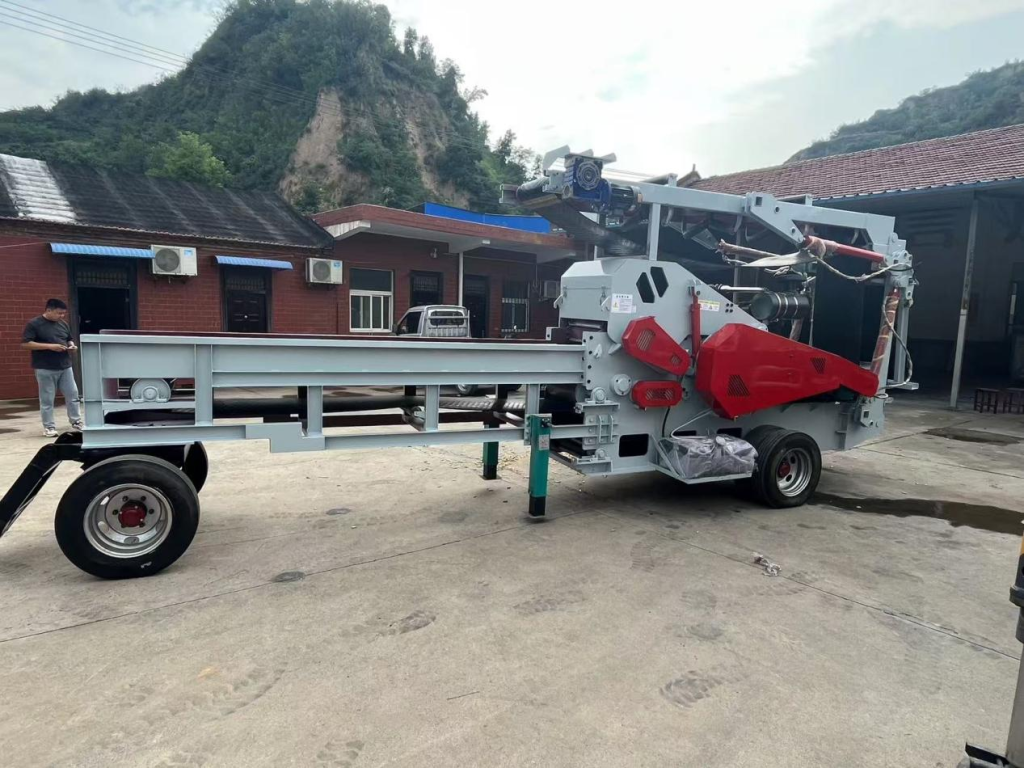

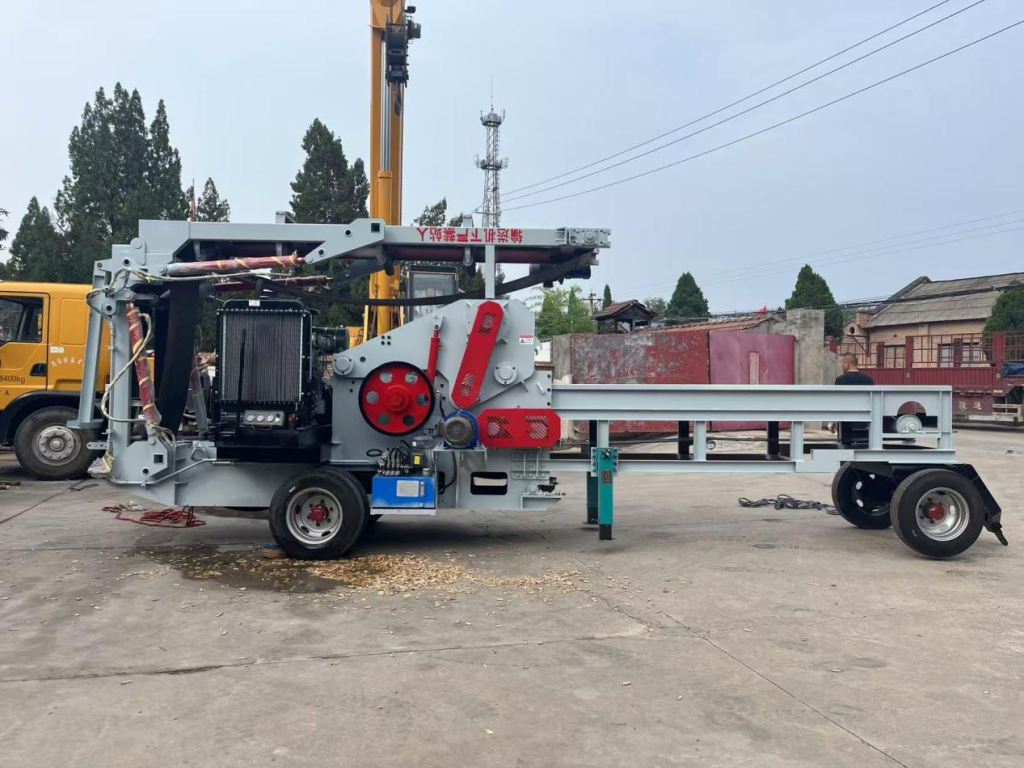

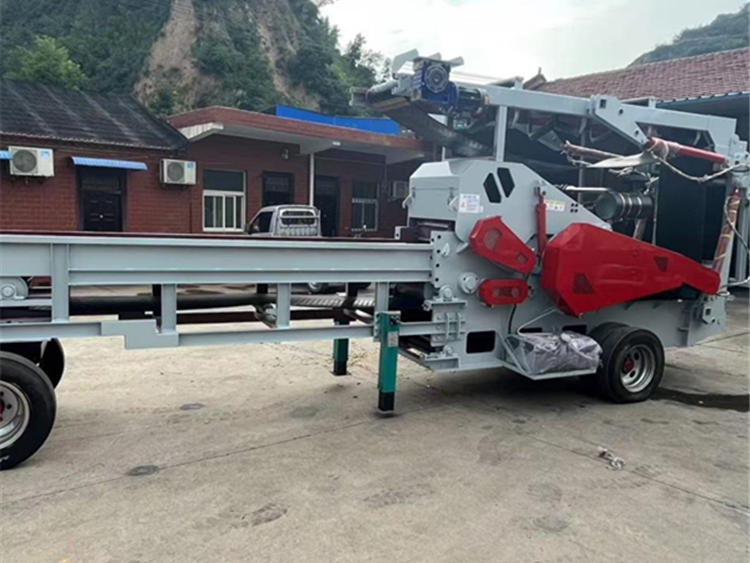

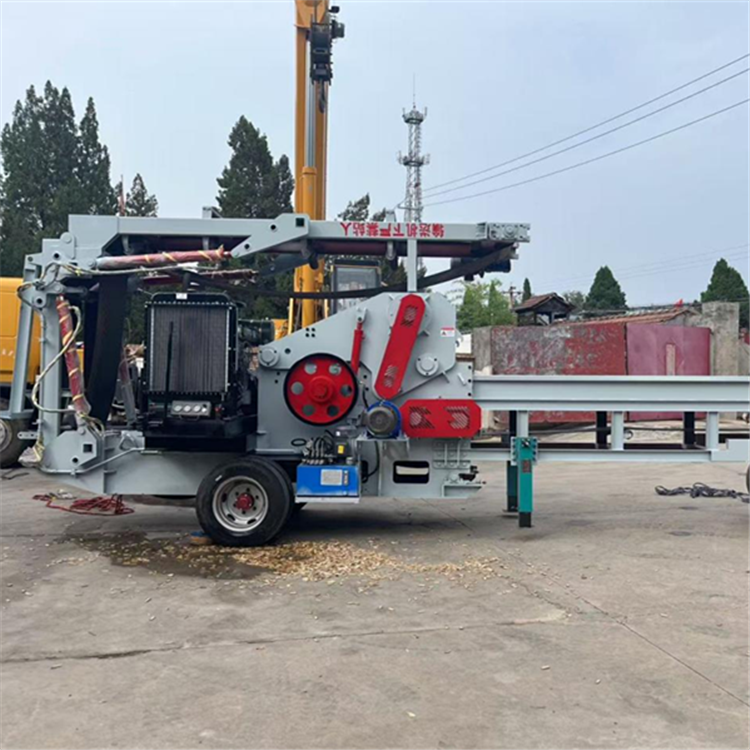

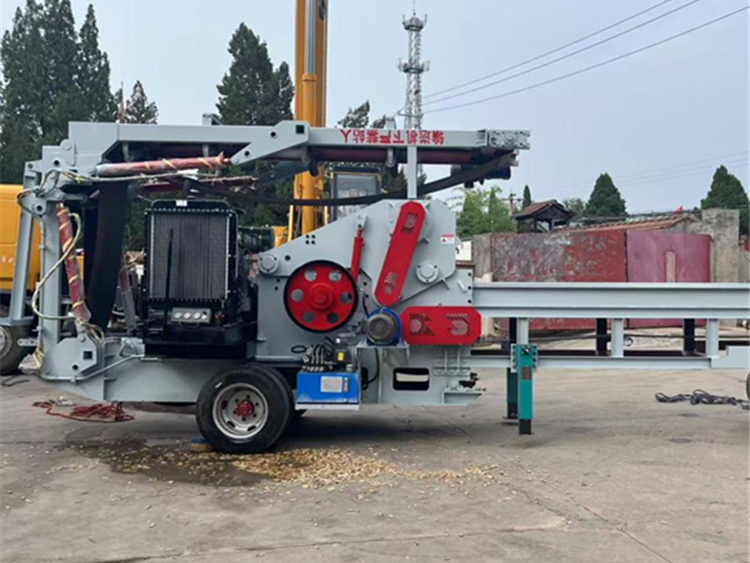

The 600 comprehensive wood crusher is a compact, multi-functional crushing device designed for small and medium-scale wood processing needs. It uses a combination of hammer blades and knife blades to efficiently crush wood materials such as tree branches, planks, and shrubs with a diameter of ≤20 cm. The output particle size is adjustable from 10-30 mm, making it suitable for nurseries, orchards, small wood processing plants, and other locations.
Product Highlights:
Versatile: Conveyor belt feeding system for easy processing of various types of waste wood
Cost-effective: Powered by a 37kW motor or a 108-horsepower diesel engine, featuring low energy consumption and a compact footprint
Durable: Alloy steel hammer combination + removable screen mesh, reducing maintenance costs by 40%
Intelligent and convenient: One-button start/stop control with overload protection, ensuring simple and safe operation
Environmentally Friendly: Low operational noise levels, with crushed materials directly usable for organic mulching or fuel
The 600 model, with its compact design, excellent cost-effectiveness, and low operational costs, serves as a reliable assistant for small-scale agricultural and forestry operators, supporting environmentally friendly production.
