Model | Model 800 |
Host power | 55kw/130HP |
Feed opening width | 800mm |
Maximum feed size | 250mm(log diameter) |
Knife roller diameter | 750mm |
Knife roller speed | 826r/min |
Blade type | Blade type/Hammer type |
Feed conveyor type | rubber belt |
Feed conveyor dimensions | 4.5m |
Discharge conveyor type | rubber belt |
Discharge conveyor dimensions | 8m |
Finished material dimensions | 5-50mm |
Equipment weight | 5200kg |
Equipment dimensions | 6.5*1.8*1.8m(L*W*H) |
production capacity | 5-8t/h |

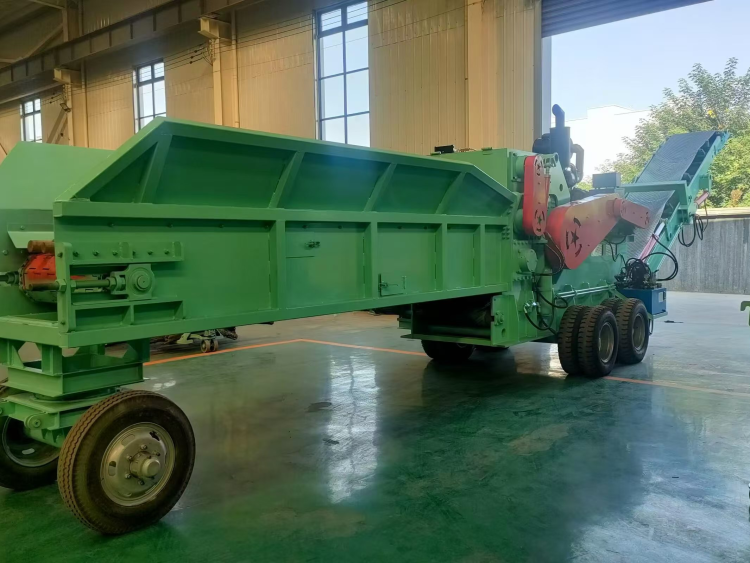

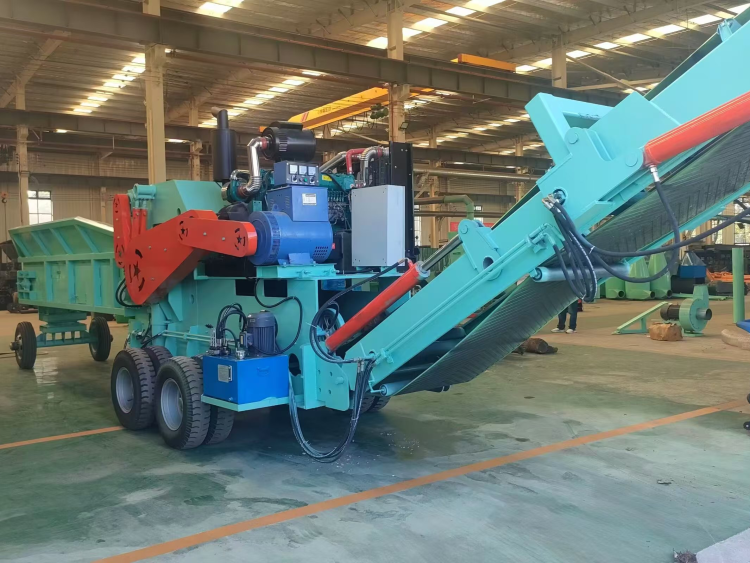

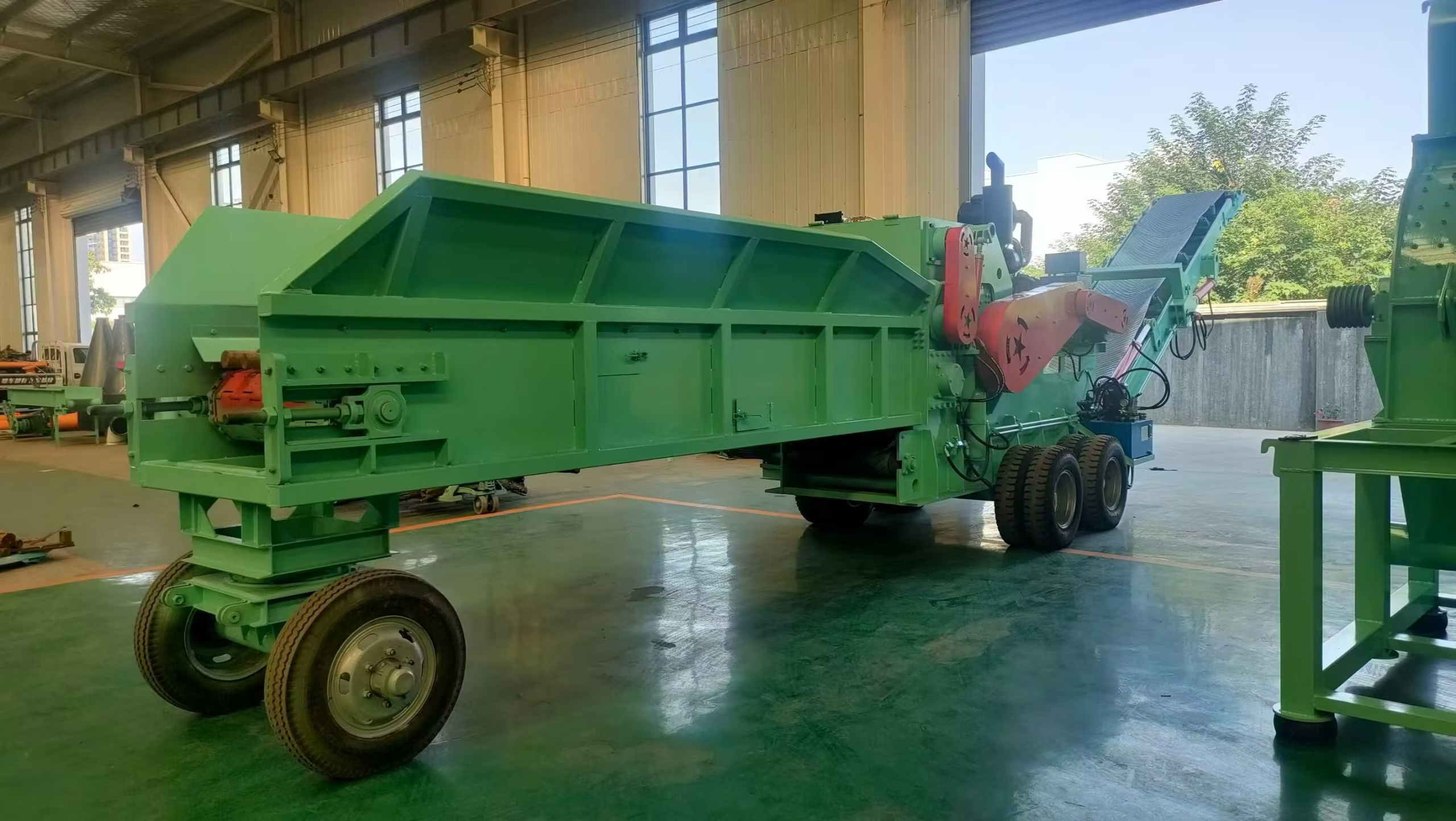

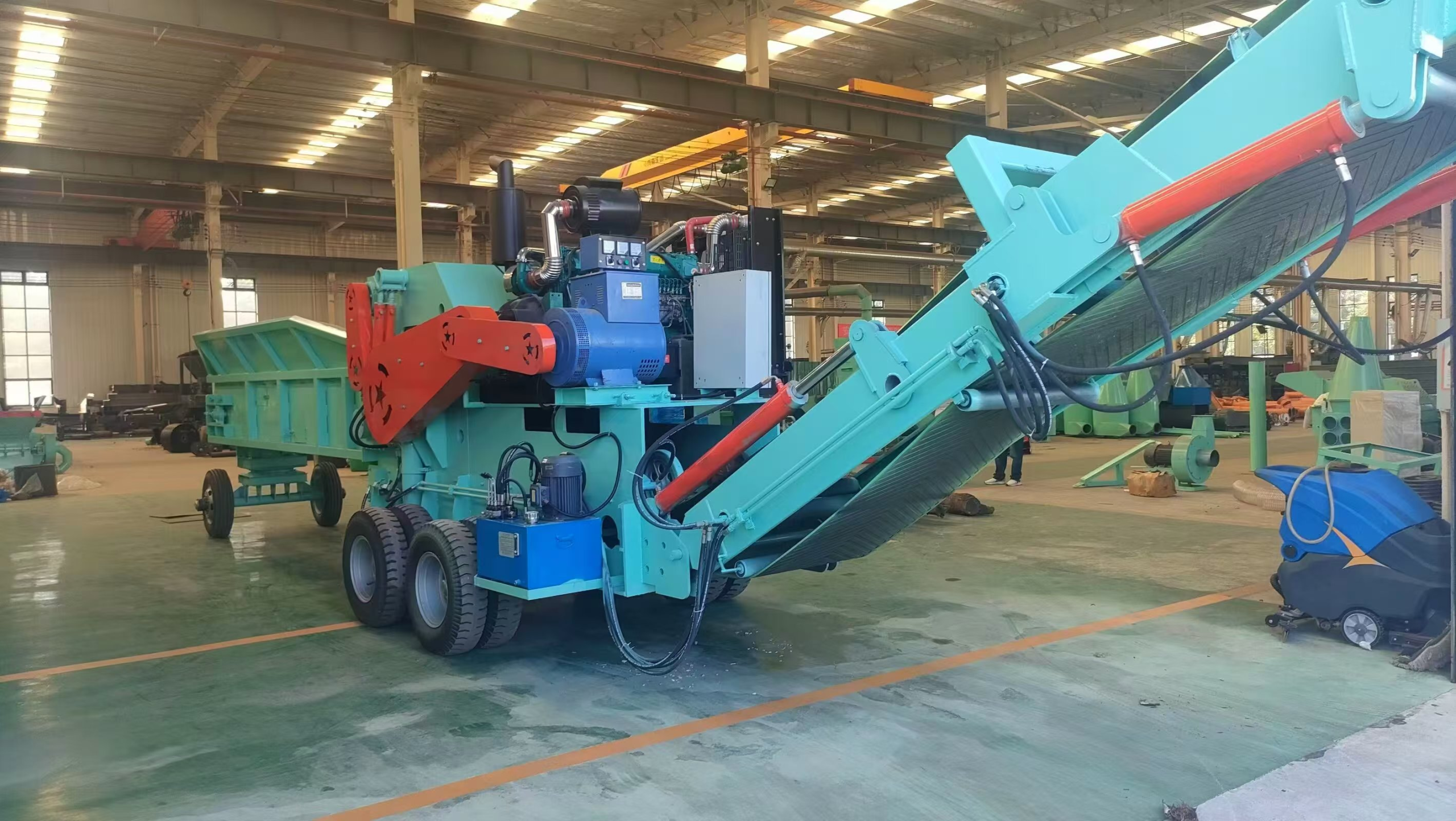

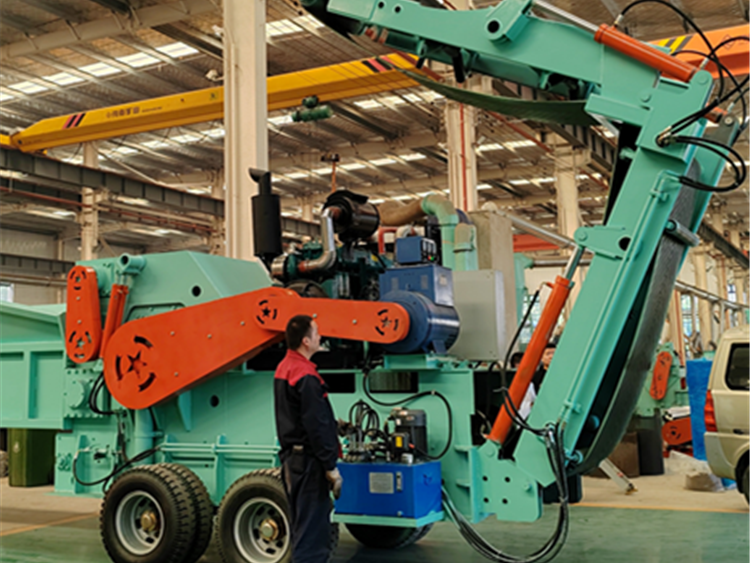

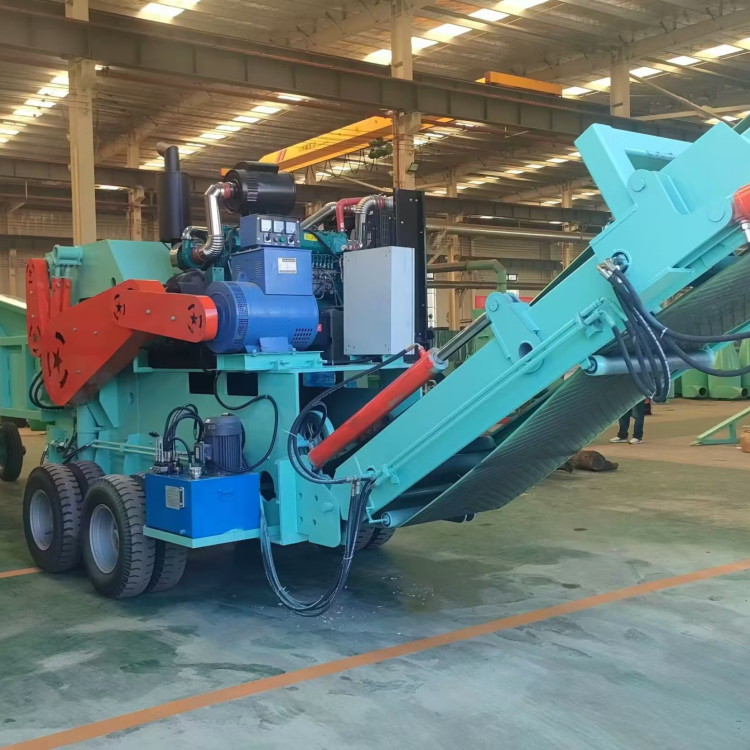

The 800 comprehensive wood crusher is a multifunctional professional crushing equipment designed for small and medium-sized wood processing needs. It adopts a “hammer + blade” two-stage crushing system, which can easily process various types of wood materials such as branches, planks, and wooden pallets with a diameter of ≤25cm. The output particle size is adjustable from 10-40mm, making it an ideal choice for landscaping companies, biomass fuel plants, and wood recycling stations.
Core Advantages:
◆ Powerful Shredding: Driven by a 55kW high-torque motor or a 130-horsepower diesel engine, with a processing capacity of 5-8 tons per hour
◆ Intelligent Design: Hydraulic lid-opening mechanism for easy maintenance
◆ Durable: Alloy steel blades or high-manganese steel wear-resistant hammers
◆ Safe and environmentally friendly: Fully enclosed structure design with dust collection interface to suppress dust

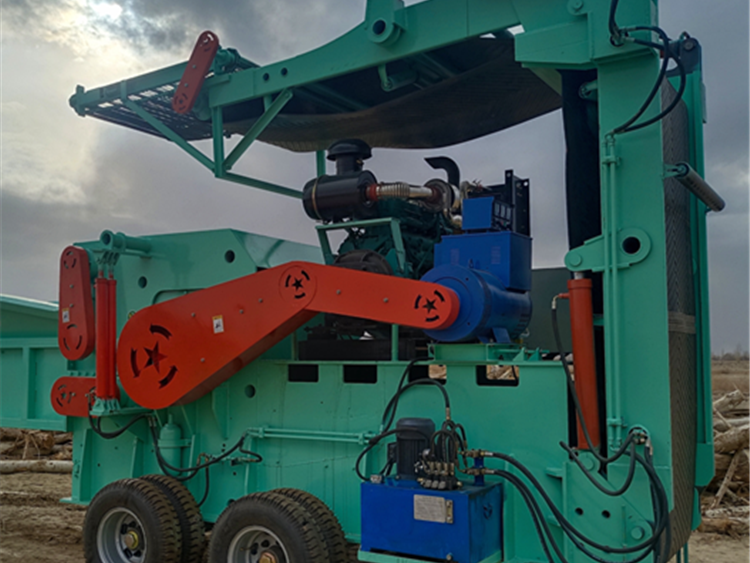

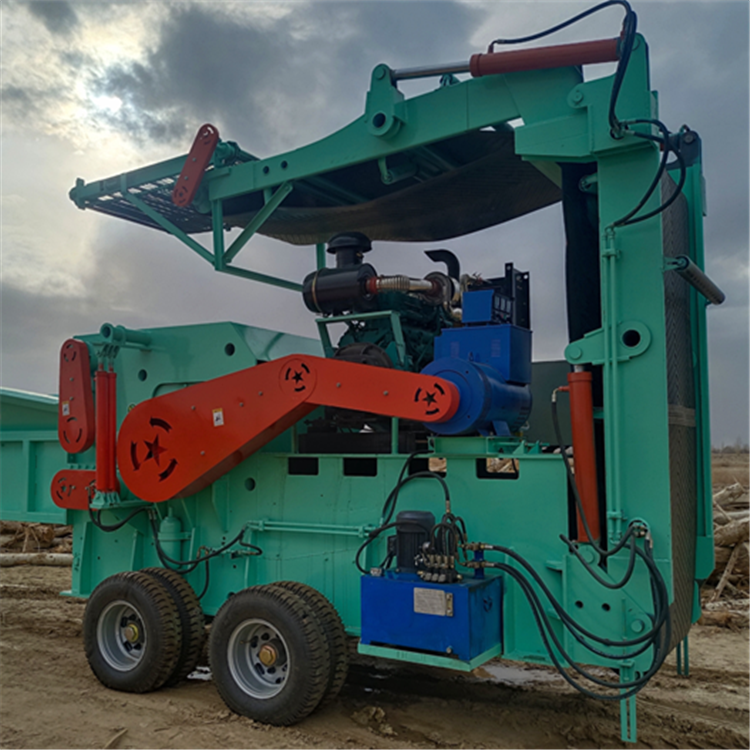

◆ Mobile and flexible: Optional heavy-duty trailer chassis or self-propelled tracked chassis for easy site relocation
The 800 model stands out for its excellent cost-effectiveness and stable performance, making it the top choice for medium-sized wood processing operations and helping users achieve efficient resource utilization.
