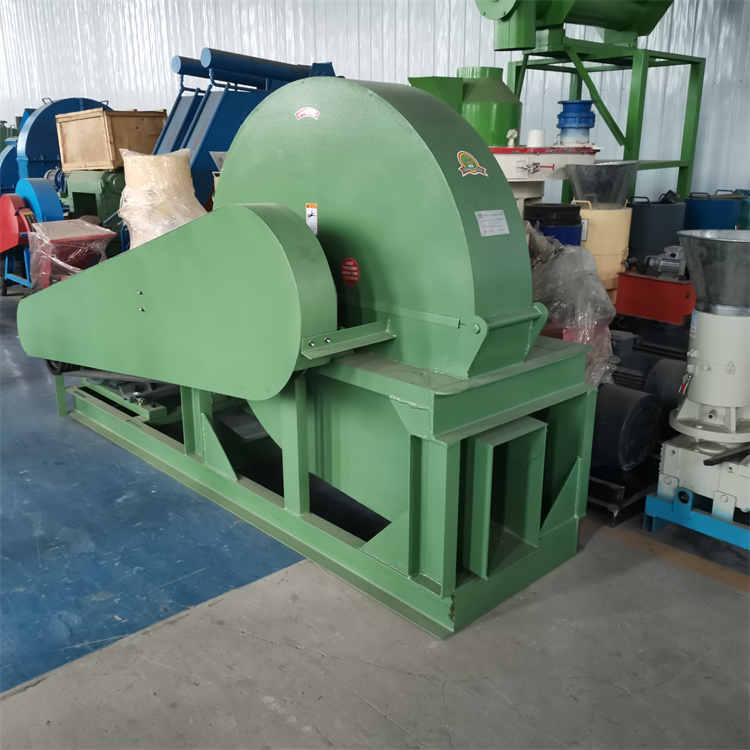

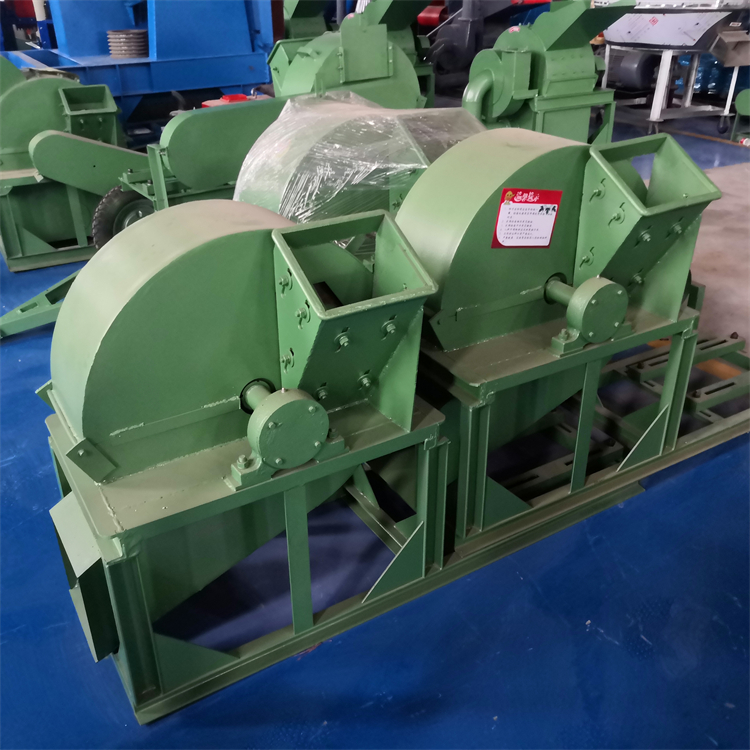

800 Type Disc Wood Planer

800 Type Disc Wood Planer

The 800 disc wood planer is a medium-sized wood planing equipment equipped with a 30kW high-power motor. It can process logs with a diameter of ≤20cm and produce wood chips with a size of 5-30mm. The output of a single machine is 1 ton/hour. It is the preferred equipment for large-scale particleboard production and biomass energy enterprises.

model numberModel 800
Diameter of cutter plate800 mm
Number of blades8 pcs
Inlet size200*220 mm
Maximum feed size200 mm
power30kw/102HP
Finished Size10-30mm
production capacity1t/h

The 800 disc wood planer is a medium-sized wood planing equipment equipped with a 30kW high-power motor. It can process logs with a diameter of ≤20cm and produce wood chips with a size of 5-30mm. The output of a single machine is 1 ton/hour. It is the preferred equipment for large-scale particleboard production and biomass energy enterprises.

Technical highlights:

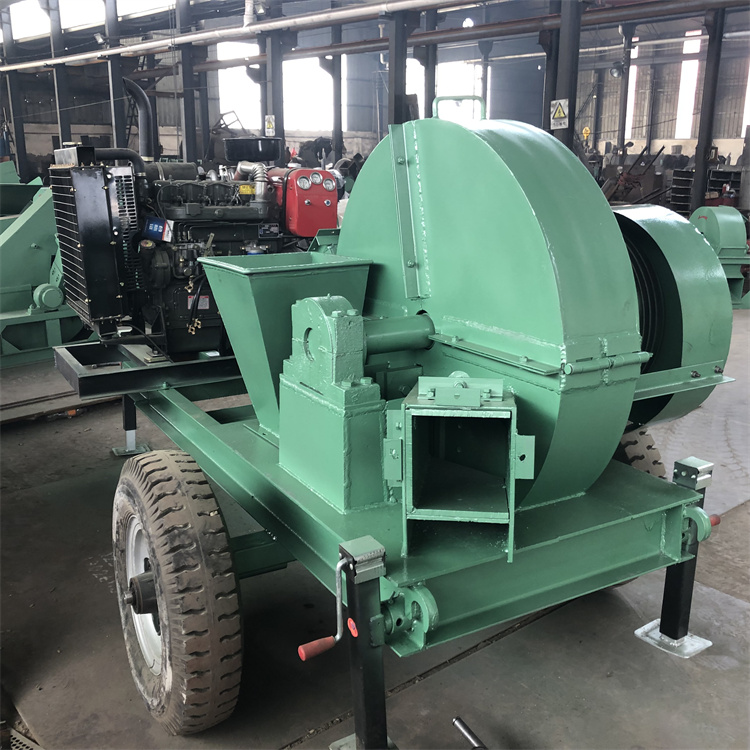

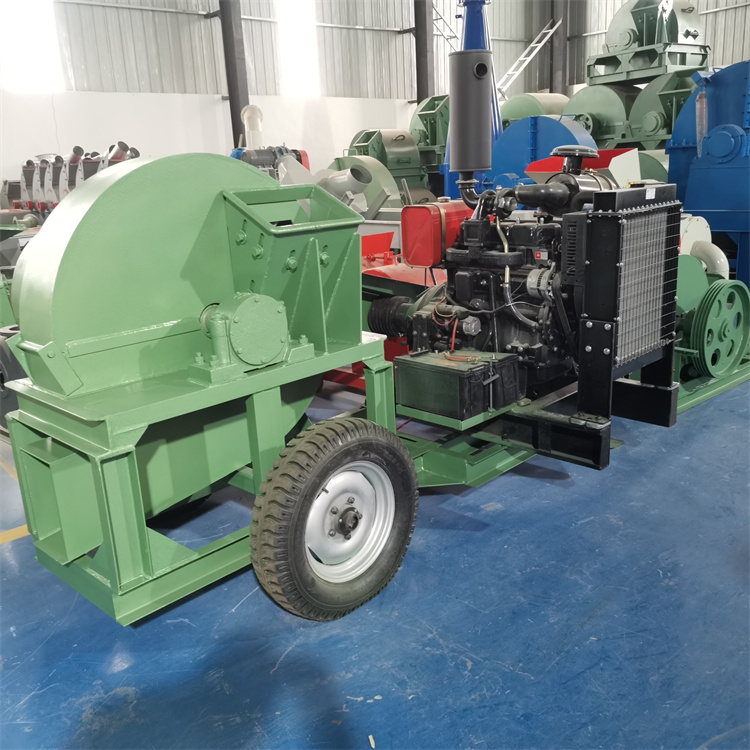

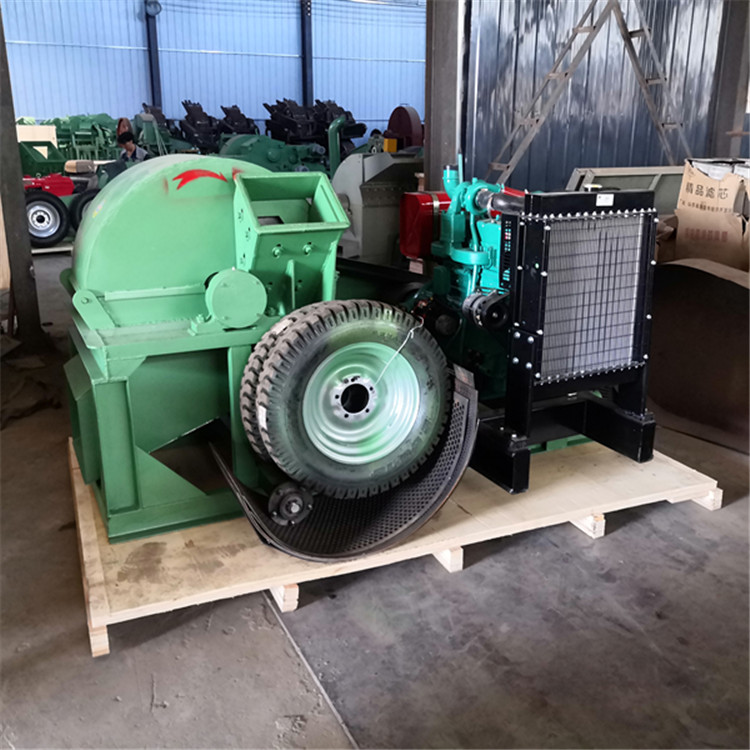

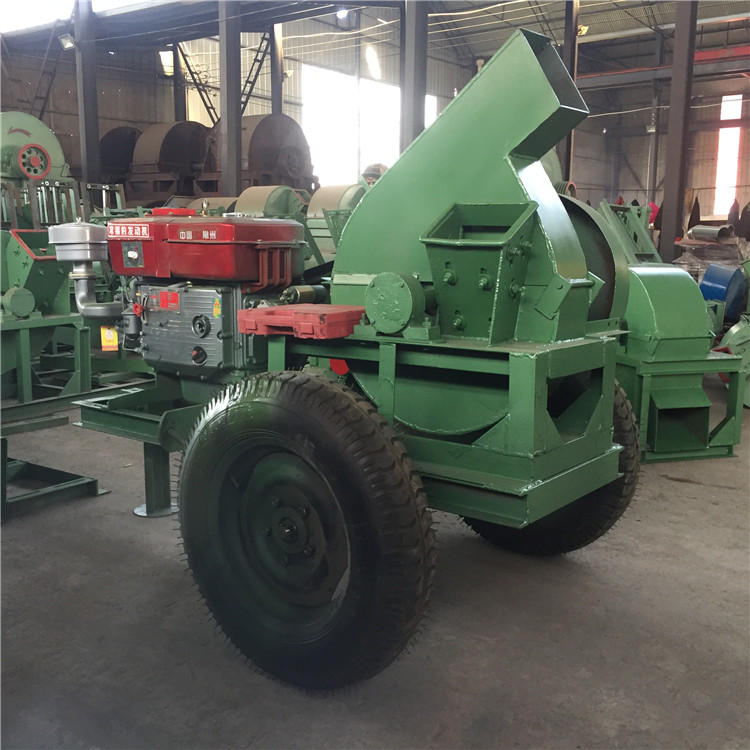

Power system: 30kW motor or diesel engine drive, suitable for different working scenarios
Stable performance: heavy-duty cutter head + alloy cutting tools ensure long-term stable operation
Flexible configuration: fixed and mobile models are available, not limited by site conditions

The 800 Wood Planer helps customers maximize raw material utilization and reduce production costs.
