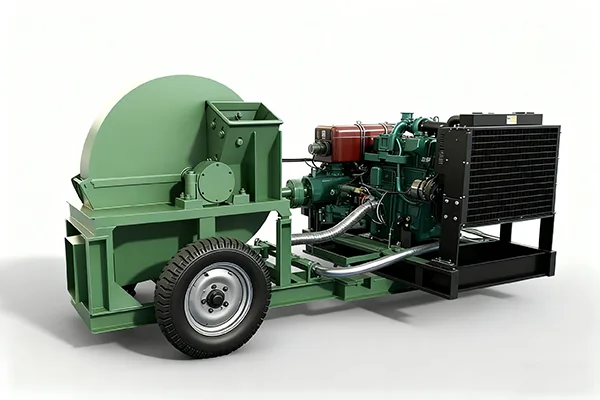

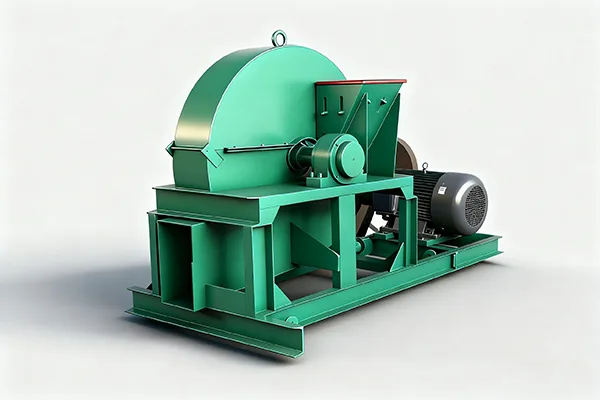

Flat Type Wood Shaving Machine
The Flat Type Wood Shaving Machine produces precise, uniform wood chips by feeding raw materials into a hopper equipped with a cutting shaft. This equipment serves as a premium raw material for manufacturing particleboard and pet bedding.
0-500MM
Feed size(Log size）
20-50KW
power
0.5-2T/H
Production capacity
Products Advantages
The Flat Type Wood Shaving Machine processes logs into precise, uniform wood shavings used for manufacturing pet bedding and particleboard, among other applications. Its stable design ensures exceptional shaving quality.
Flat Type Wood Shaving Machine
The Flat Type Wood Shaving Machine is specifically designed to produce high-quality, uniform wood chips. Its operating principle involves pressing raw materials against a platform equipped with a cutter shaft. This structure ensures consistent chip shape and exceptional quality, making it essential equipment for manufacturing high-strength engineered wood products such as particleboard, medium-density fiberboard, and oriented strand board, as well as pet bedding.
Flat Type Wood Shaving Machine Capacity
Different models of Flat Type Wood Shaving Machine offer multiple production capacity options. Manto Machinery provides the following capacity specifications: 0.5 tons per hour, 1 ton per hour, and 2 tons per hour. These options can meet diverse production demands.
Flat Type Wood Shaving Machine Applicable Raw Materials
The Flat Type Wood Shaving Machine is specifically designed for logs and wood offcuts. This equipment excels at processing raw materials such as logs and sawmill residues, ensuring the production of high-quality, consistent wood chips. These chips serve as the key raw material for manufacturing premium particleboard, medium-density fiberboard, and pet bedding.
Advantages of Flat Type Wood Shaving Machine
The Flat Type Wood Shaving Machine excels in producing uniform, high-quality wood shavings. Its stable horizontal design ensures precise control over shaving shape, thereby enhancing product quality in pet bedding and particleboard manufacturing.
Working Principle
The working principle of a Flat Type Wood Shaving Machine involves conveying raw materials onto a platform equipped with a cutter shaft. The material is compressed against the platform surface, where blades shave it into thin, uniform wood chips. These chips are then transported out via a belt conveyor located at the bottom of the machine.
Model And Technical Parameter
| Model | 400 | 600 | 800 |
|---|---|---|---|
| power (kw) | 20.5kw | 28kw | 49.5kw |
| Number of knife shafts (pcs) | 4 | 6 | 8 |
| Equipment dimensions (m) | 3.5*0.92*2.7 | 3.7*0.92*2.7 | 4.2*1.1*2.8 |
| capacity (t/h) | 0.5 | 1 | 2 |
Note: The parameters in the table are for reference only. Products are subject to updates and changes. For the latest information, please contact us.
