model number | Model 1300 |
Infeed Conveyor Dimensions | L 4m * W 1.3m |

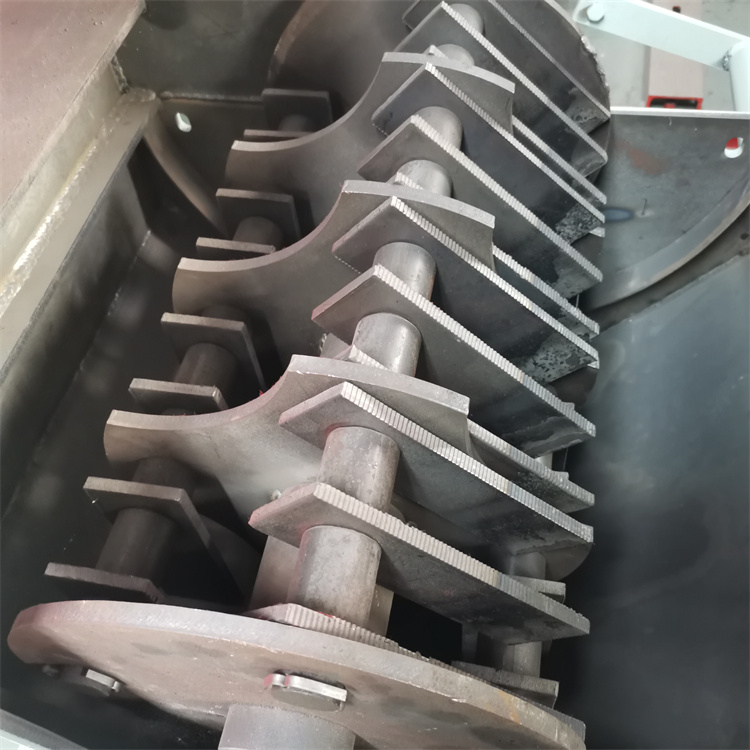

Number of blades | 100 pcs |
Inlet size | 1300 * 400mm |
Maximum feed size | 1300*150 mm(W*H) |
Host power | 90kw |
Output Size | 1-20mm(Depends on the sieve mesh size) |
production capacity | 3.5-4t/h |

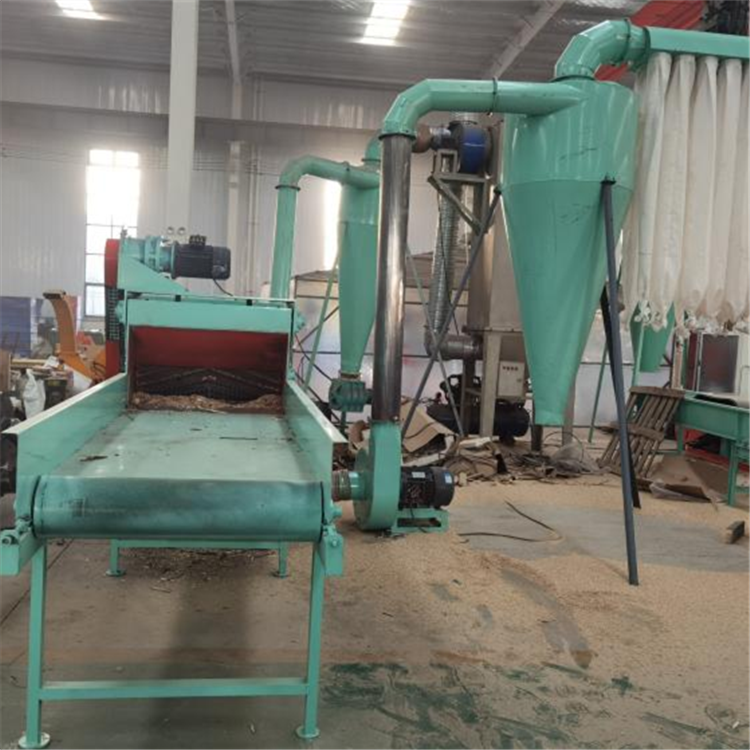

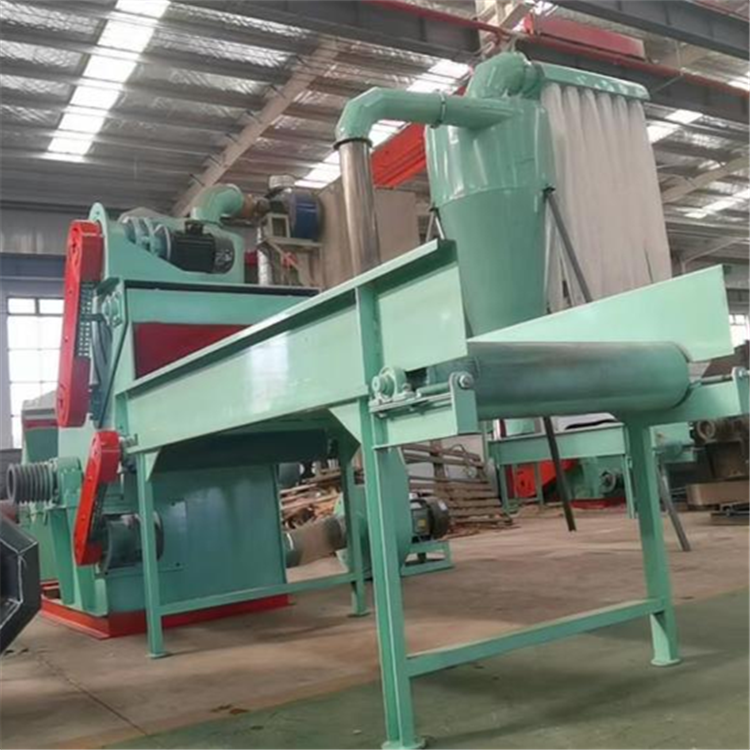

The 1300 model forced feed wood crusher is a high-performance equipment designed for large-scale wood processing. It adopts a heavy-duty forced feed system and can efficiently process hard wood such as logs, tree branches, and construction templates. The maximum production capacity of a single machine is 3.5-4 tons/hour, making it an ideal choice for biomass energy production and wood recycling industries.
Core Advantages
• Ultra-powerful motor: Equipped with a 90kW high-power motor, it can easily crush various types of wood with a height of up to 20cm and a width of up to 130cm
• Intelligent feeding: The roller-driven forced feeding system improves processing efficiency by 50% and completely eliminates material jamming issues
• Intelligent control: Equipped with an integrated control system, it provides overload protection and fault alarm functions
Application Areas
✓ Large-scale biomass power plants ✓ Wood processing parks ✓ Construction template recycling ✓ Landscape waste processing
Customization Services: Supports the addition of magnetic separation iron removal, dust removal, and noise reduction modules.
