| Model | Model 1300 |
| Host power | 110kw/320HP |
| Feed opening width | 1300mm |
| Maximum feed size | 350mm（log diameter） |
| Knife roller diameter | 900mm |
| Knife roller speed | 760r/min |
| Blade type | Blade type/Hammer type |
| Feed conveyor type | metal chain plate |
| Feed conveyor dimensions | 5m |
| Discharge conveyor type | rubber belt |
| Discharge conveyor dimensions | 10m |
| Finished material dimensions | 20-50mm (Depends on the sieve mesh size) |
| Equipment weight | 9500kg |
| Equipment dimensions | 8.6*2.3*2.2m（L*W*H) |
| production capacity | 15-20t/h |

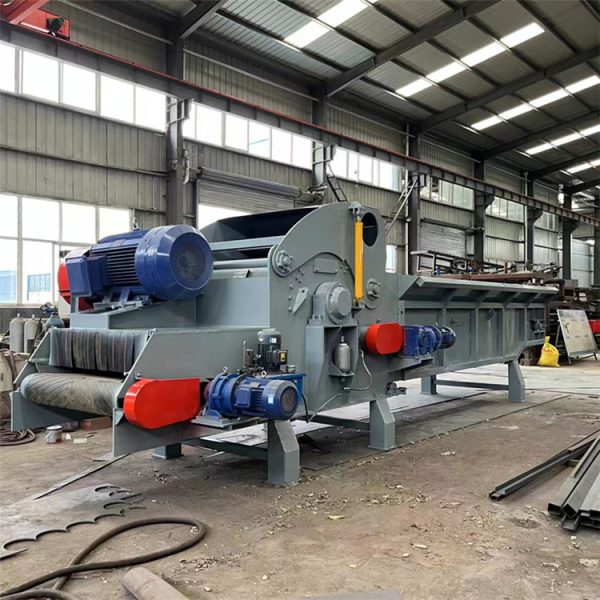

The 1300 comprehensive wood crusher is a multi-functional wood crushing equipment designed to handle all kinds of wood waste. It integrates hammer and blade crushing technology to quickly crush tree branches, planks, scrap wood, and other wood materials. The crushing particle size is adjustable from 10-50 mm, making it suitable for landscaping, wood recycling, biomass fuel preparation, and other fields.
Core Advantages:
Multi-functional: Dual rotor design with blades and hammers to meet diverse operational requirements
High Efficiency and Energy Savings: Powered by an 110kW motor or a 320-horsepower diesel engine, equipped with an intelligent variable-frequency system, reducing energy consumption by 15%
Stable and Durable: High-manganese steel wear-resistant hammer heads combined with adjustable-gap screens ensure extended service life of critical components
User-Friendly Operation: Hydraulic lid-opening mechanism for easier maintenance and servicing
The 1300 model, with its excellent adaptability and cost-effectiveness, is an ideal choice for small and medium-sized wood processing enterprises, supporting resource recycling and green development.
